How Does a Body Trimmer Power System Work? From Battery to Motor
Share
1. What Is a Body Trimmer Power System?
A rechargeable body trimmer does not rely on a single component for its performance.
The electrical and mechanical systems work together to turn stored battery energy into blade movement.

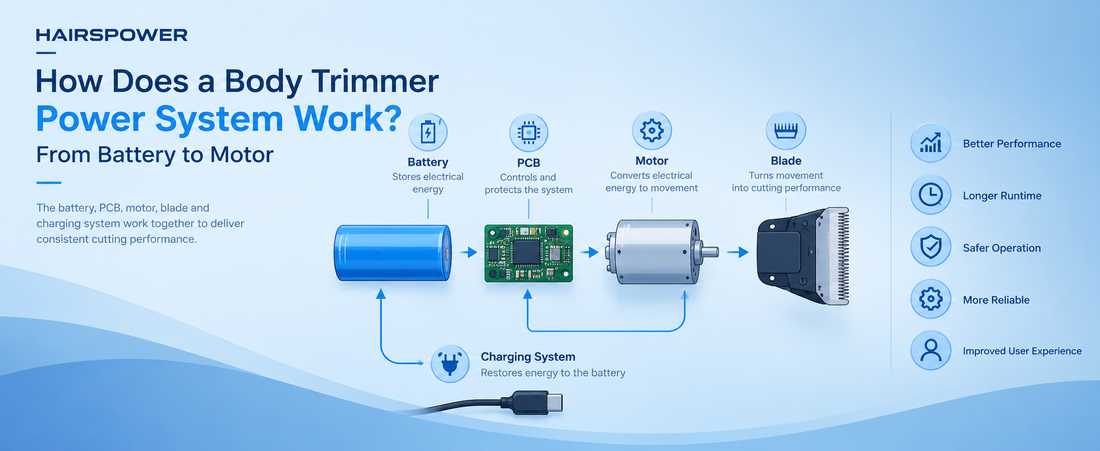

A simplified power path is:
Battery → PCB → Motor → Blade
The charging system supplies energy to the battery, while the PCB helps control the electrical system.
This means the final cutting performance depends on how well these components work together.
2. The Battery Stores the Energy
The battery provides the electrical energy required to operate the trimmer.
For rechargeable body trimmers, manufacturers need to consider factors such as:
- Battery capacity
- Voltage
- Size
- Weight
- Discharge characteristics
- Charging requirements
A larger capacity can provide greater potential runtime, but it can also affect product size, weight, and charging time.
The battery therefore needs to match the overall product requirements.
3. What Does the PCB Do?
The PCB connects and controls important electrical functions inside the product.
Depending on the design, it may be involved in:
- Battery management
- Charging control
- Motor operation
- Protection functions
- Battery indication
- LED control
The PCB therefore acts as an important part of the connection between the battery and the rest of the product.
4. The Motor Converts Electrical Energy Into Movement
The motor converts electrical energy into mechanical movement.
This movement is transferred to the blade system, allowing the trimmer to cut hair.
Motor selection can involve several considerations:
Speed + Torque + Power Consumption + Size + Noise
A motor should provide sufficient performance for the intended product without creating unnecessary energy consumption or excessive size.
5. The Blade Uses the Motor's Mechanical Power
The motor does not directly cut hair.
It drives the moving blade or cutting mechanism.
This means the blade system needs to be matched to the motor.
Blade geometry, movement, alignment, and friction can all affect how efficiently the motor's mechanical power is converted into cutting performance.
A high-performance motor cannot fully compensate for an unsuitable blade design.
6. How Does the Charging System Fit In?
The charging system restores energy to the battery.
Depending on the product design, this can include:
- Charging port
- Charging circuit
- PCB
- Charging cable
- Charging indicator
The charging system needs to be compatible with the battery and electrical design.
For waterproof body trimmers, the charging structure also needs to be considered together with the waterproof housing.
7. What Happens When the Product Is Under Load?
When a trimmer cuts thicker or denser hair, the blade can encounter greater resistance.
The motor may then need to provide more mechanical effort.
This can increase energy consumption and affect battery runtime.
The power system therefore needs to remain stable under the intended operating conditions.
This is one reason manufacturers test the complete product rather than evaluating each component separately.
8. Why Component Matching Matters
Imagine using a high-capacity battery with an unsuitable motor or an inefficient blade system.
The larger battery alone would not necessarily create a better product.
Similarly, a high-speed motor may not provide the expected result if the blade system is poorly matched.
A practical power system needs to balance:
| Component | Main Consideration |
|---|---|
| Battery | Capacity and electrical characteristics |
| PCB | Control and protection |
| Motor | Speed, torque, and efficiency |
| Blade | Cutting efficiency and resistance |
| Charging system | Charging performance and compatibility |
9. How Manufacturers Test the Complete System
During product development, manufacturers can evaluate the complete power system through tests such as:
- Runtime testing
- Charging testing
- Motor operation
- Cutting performance
- Temperature monitoring
- Noise and vibration testing
- Protection-function testing
The exact tests depend on the product design and target requirements.
Testing the complete product helps identify problems that may not appear when components are evaluated individually.
10. What Should Brands Discuss During OEM Development?
When developing a rechargeable body trimmer, brands can discuss the complete power system instead of requesting individual specifications only.
Important questions include:
- What battery configuration is used?
- What motor is selected?
- How is the motor controlled?
- What charging system is used?
- What protection functions are included?
- What runtime is expected?
- How is the complete system tested?
This provides a more useful picture of the final product.
Final Thoughts
A rechargeable body trimmer is a combination of electrical and mechanical systems.
The battery provides energy, the PCB manages the electrical system, the motor creates movement, and the blade converts that movement into cutting performance.
When these components are properly matched, the product can achieve a better balance between cutting performance, runtime, size, charging convenience, and reliability.
For OEM and private label development, treating the power system as one complete system can help brands make better product decisions from the beginning.
