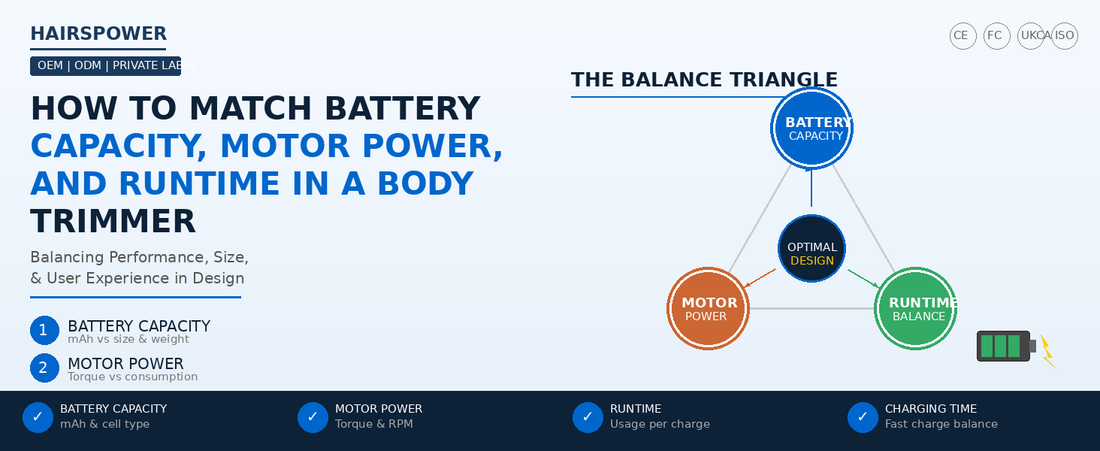

How to Match Battery Capacity, Motor Power, and Runtime in a Body Trimmer

1. Why Battery, Motor, and Runtime Must Be Considered Together

A rechargeable body trimmer needs enough power to cut hair effectively while providing practical battery runtime.

These three factors are closely connected:

Battery Capacity → Motor Power → Energy Consumption → Runtime

If the motor requires more energy, the battery needs to provide enough power for stable operation. At the same time, increasing battery capacity can affect the product's size, weight, charging time, and cost.

For this reason, professional manufacturers usually develop the motor and battery as part of the same power system rather than selecting them independently.

2. Does a Larger Battery Always Mean Longer Runtime?

Not necessarily.

Battery capacity is usually measured in mAh (milliamp-hours), but runtime also depends on factors such as:

• Motor power consumption
• Motor efficiency
• Blade resistance
• Hair density
• Operating conditions
• Electronic circuit design
• Battery quality

For example, two body trimmers with batteries of similar capacity can have different actual runtimes because their motors and electronic systems are different.

This is why battery capacity should not be used as the only indicator when comparing products.

3. How Motor Power Affects Battery Consumption

The motor is one of the main energy-consuming components in a body trimmer.

A stronger motor can help maintain cutting performance when the blade encounters thicker or denser hair. However, higher power consumption can also reduce runtime if the battery capacity and electrical system are not properly matched.

Manufacturers therefore need to balance:

Cutting Performance + Motor Efficiency + Battery Capacity + Runtime

The goal is not simply to use the most powerful motor available, but to select a motor that is appropriate for the intended application.

4. Why Motor Speed Is Not the Only Performance Factor

Some body trimmers advertise high motor speeds, such as thousands of revolutions per minute.

High speed can be useful, but it does not automatically guarantee better cutting performance.

Blade design, blade movement, motor torque, hair capture, and the overall mechanical structure also influence performance.

A well-designed body trimmer should have a power system that allows the motor and blade to work efficiently together.

5. How Battery Capacity Affects Product Design

Increasing battery capacity can provide longer potential runtime, but it may also increase:

• Product weight
• Internal space requirements
• Charging time
• Material cost
• Overall product size

For compact body trimmers, internal space is especially important.

Manufacturers must consider the battery together with the motor, PCB, charging components, waterproof structure, and other internal parts.

Therefore, the “largest possible battery” is not always the best solution.

6. Runtime Should Match the Product Positioning

Different products can require different runtime targets.

For example:

Product Positioning	Possible Design Priority
Compact travel trimmer	Small size and convenient charging
Everyday body trimmer	Balanced runtime and performance
Premium body groomer	Strong performance and longer runtime
Multi-function trimmer	Higher power and sufficient battery capacity

The right configuration depends on the target market, price range, product size, and intended usage.

7. Continuous Runtime vs Real-World Runtime

Manufacturers normally test runtime under controlled conditions.

However, actual usage can vary.

A user may operate the trimmer against different hair thicknesses, use different attachments, or stop and restart the motor several times.

Therefore, product specifications should be based on standardized testing while recognizing that real-world runtime can vary depending on usage conditions.

8. How Manufacturers Match the Battery and Motor

During product development, manufacturers typically consider several factors together:

Step 1: Define the performance target

Determine the required cutting performance, motor speed, and expected usage.

Step 2: Select a suitable motor

The motor should provide sufficient performance without unnecessary energy consumption.

Step 3: Determine the battery requirement

Battery capacity is selected according to the expected runtime and available internal space.

Step 4: Evaluate the charging system

Charging time, charging current, connector type, and protection functions also need to be considered.

Step 5: Test the complete product

The motor, battery, blade, PCB, and mechanical structure should be tested as a complete system.

This process helps manufacturers avoid optimizing one component while creating problems elsewhere.

9. What Brands Should Confirm During OEM Development

When developing a private label body trimmer, brands should not only ask:

“How many mAh is the battery?”

It is more useful to confirm the complete power system, including:

• Battery capacity
• Expected runtime
• Motor performance
• Charging time
• Charging interface
• Battery protection
• Product weight
• Intended usage
• Test conditions

This gives brands a more accurate understanding of the final product.

10. The Best Power System Is a Balanced One

A good body trimmer does not necessarily need the biggest battery or the fastest motor.

The better approach is to create a balanced system where:

Motor Performance + Battery Capacity + Blade Efficiency + Circuit Design + Product Size

work together.

For OEM and private label projects, this balance can directly influence product performance, user experience, manufacturing cost, and market positioning.

Final Thoughts

Battery capacity, motor power, and runtime should be considered as parts of one complete system.

A larger battery can increase runtime, but it can also increase weight and charging requirements. A stronger motor can improve cutting performance, but it may consume more energy.

For this reason, professional body trimmer development is about finding the right balance rather than maximizing a single specification.

For brands developing a new rechargeable body trimmer, working with an experienced manufacturer can help optimize the motor, battery, blade, and electronic system together from the beginning.
